Brand Name : VENTECH
Model Number : VH Series
Certification : CE
Place of Origin : CHINA
MOQ : 1 unit
Price : 1000USD-5000USD/unit
Payment Terms : L/C, T/T, Western Union
Supply Ability : 50 Containers Per Month
Delivery Time : 30-60days
Packaging Details : standard pallet packing
Product name : Vcare full intelligent air balance system
Condition : New
Material : Best
Color : White
Application : HVAC system
Business type : Manufacturer
Payment term : T/T,L/C
Sample : Yes(in charge)
VENTECH(Vcare) central a/c with heat pump healthy air conditioner for wholehouse central A/C system

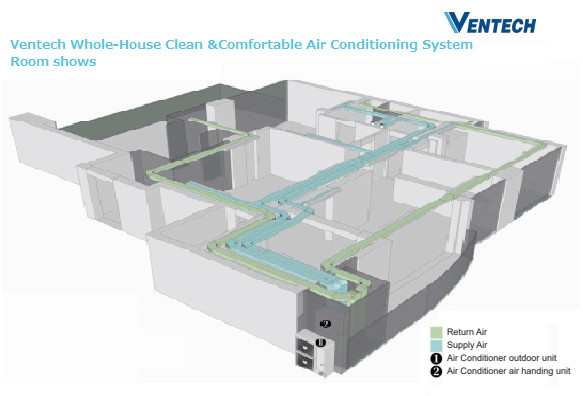

How VENTECH Whole-House Clean & Comfortable Home Air Conditioner works?
With power source, the refrigerant flows through the system between the outdoor unit and indoor unit. Warm air from the inside of your house will be return by a motorized fan, the refrigerant is pumped from the compressor coil to the interior evaporator coil, where it absorbs the heat from the air. This cooled air will supply through the ducting to cool the whole house by air terminal units.
Technical specification : | ||||||
Item | 12K 220V | 18K 220V | 24K 220V | |||
1 | Model name | FACTORY | Set | AS-12CR2SVE**03 | AS-18CR2SXA**02 | AS-24CR2SBB**01 |
Factory Outdoor | AS-12CR2SVE**03 | AS-18CR2SXA**02 | AS-24CR2SBB**01 | |||
Factory Indoor | AS-12CR2SVE**03 | AS-18CR2SXA**02 | AS-24CR2SBB**01 | |||
2 | mabe | Set | ||||
3 | ID | |||||
4 | OD | |||||
5 | Power supply | V/Ph/Hz | 220V~,60Hz,1P | 220V~,60Hz,1P | 220V~,60Hz,1P | |
6 | Cooling | Capacity | Btu/h | 12000 | 18000 | 24000 |
7 | Capacity | W | 3516.998827667 | 5275.498241501 | 7033.997655334 | |
8 | Input Power | W | 1134.51575086 | 1701.773626291 | 2269.031501721 | |
9 | Rated current | A | 5.3 | 7.9 | 10.280616275 | |
10 | SEER | Btu/h.W | 10.5772 | 10.5772 | 10.5772 | |
11 | EER | W/W | 3.1 | 3.1 | 3.1 | |
12 | Heating | Capacity | Btu/h | NA | NA | NA |
13 | Capacity | W | NA | NA | NA | |
14 | Input | W | NA | NA | NA | |
15 | Rated current | A | NA | NA | NA | |
16 | HSPF | Btu/h.W | NA | NA | NA | |
17 | COP | W/W | NA | NA | NA | |
18 | Moisture Removal | l/h | 1.5 | 1.8 | 2 | |
19 | Max. input consumption | W | 1500 | 2500 | 2850 | |
20 | Max. current | A | 8.1 | 14 | 16 | |
21 | Starting current | A | 28.5 | 38.5 | 61 | |
22 | Operation Control | RC | RC | RC | ||
36 | Indoor air flow (Hi/Mi/Lo) | m3/h | 580 | 950 | 1200 | |
37 | Indoor noise level (Hi/Mi/Lo) | dB(A) | 39/35 | 43/38 | 45/42 | |
67 | Outdoor noise level | dB(A) | 53 | 54 | 56 | |
68 | Outdoor dimension | Unit (WxHxD) | mm | 715x482x240 | 810x585x280 | 860x650x310 |
69 | Packing (WxHxD) | mm | 830×530×315 | 940x630x385 | 995x730x445 | |
70 | Outdoor weight | Net | kg | 25 | 38 | 39 |
71 | Gross | kg | 28.5 | 41 | 42 | |
72 | Refrigerant | Type | R410A | R410A | R410A | |
73 | Charge | g | 750 | 1000 | 1260 | |
74 | Refrigerant pipe | Liquid side | mm | 1/4 | 1/4 | 3/8 |
75 | Gas side | mm | 1/2 | 1/2 | 5/8 | |
76 | Max. refrigerant pipe length | m | 15 | 15 | 15 | |
77 | Max. difference in level | m | 5 | 5 | 5 | |
78 | Operation temperature range | ℃ | 16℃-43℃ | 16℃-43℃ | 16℃-43℃ | |
79 | Ambient temperature range | ℃ | 16℃-30℃ | 16℃-30℃ | 16℃-30℃ | |
80 | Application area | m2 | 23 | 35 | 45 | |
81 | Qty’per 20’& 40’&40HQ (with pipe) | Set |
